DIN 983

SK: Poistný krúžok s výstupkami pre hriadele
EN: External retaining ring with lugs
DE: Sicherungsring (Haltering) mit Lappen für Wellen

Standards: DIN 983

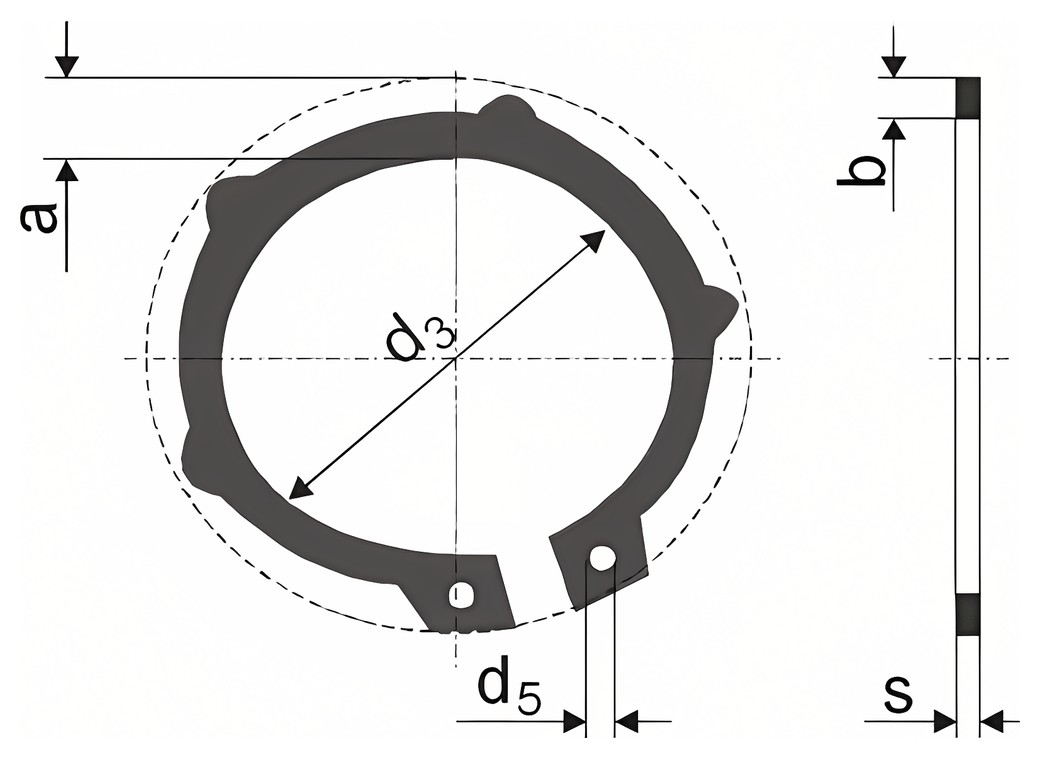

DIN 983 – Technical drawing

Available sizes:

d 3	15.7	16.5	18.5	20.5	23.2	24.2	27.9	29.6	32.2	36.5	41.5	45.8	50.8	60.8
a max.	3.6	3.7	3.8	4.0	4.3	4.4	4.7	5.0	5.2	7.2	7.2	8.2	8.2	10.2
b	2.4	2.5	2.6	2.8	3.0	3.1	3.4	3.6	3.8	4.2	4.6	5.0	5.4	6.2
d 5 min.	1.7	2.0	2.0	2.0	2.0	2.0	2.0	2.5	2.5	2.5	2.5	2.5	2.5	3.0
s	1.0	1.2	1.2	1.2	1.2	1.2	1.5	1.5	1.5	1.75	1.75	2.0	2.0	2.5
