DIN 94

SK: Závlačka
EN: Split pin (cotter pin)
DE: Splint

Standards: DIN 94 | ISO 1234 | STN 011781

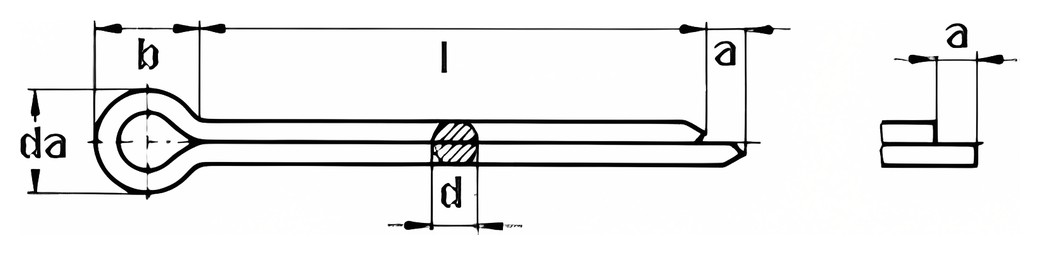

DIN 94 – Technical drawing

Available sizes:

d [mm]d max.d min.d a max.d a min.bLengths l in stock (mm)
10,90,81,81,636, 8, 10, 12, 16, 18, 20, 22, 25, 32, 40
1,210,921,738, 10, 12, 14, 16, 20, 25, 32, 36, 40
1,61,41,32,82,43,28, 10, 12, 14, 16, 18, 20, 22, 25, 28, 32, 36, 40, 50
21,81,73,63,248, 10, 12, 14, 16, 18, 20, 22, 25, 28, 32, 36, 40, 45, 50
2,52,32,14,64510, 12, 14, 16, 18, 20, 22, 25, 28, 32, 36, 40, 45, 50, 56, 63
3,22,92,75,85,16,410, 12, 14, 16, 18, 20, 22, 25, 28, 32, 36, 40, 45, 50, 56, 63, 71
43,73,57,46,5815, 18, 20, 22, 25, 28, 32, 36, 40, 45, 50, 56, 63, 71, 80, 90, 100, 112, 125
54,64,49,281020, 22, 25, 28, 32, 36, 40, 45, 50, 56, 63, 71, 80, 90, 100, 112, 125, 210
6,35,95,711,810,312,625, 32, 36, 40, 45, 50, 56, 63, 71, 80, 90, 100, 112, 125, 140
87,57,31513,11636, 40, 45, 50, 56, 63, 71, 80, 90, 100, 112, 125, 140
109,59,31916,62056, 63, 71, 80, 90, 100, 112, 125, 140, 160, 180, 200
1312,412,124,821,72671, 80, 90, 100, 112, 125, 140, 160, 180, 200, 250
