DIN 916

SK: Nastavovacia skrutka s kužeľovou jamkou
EN: Socket set screw with cup point
DE: Gewindestift mit Innensechskant und Ringschneide

Normy: DIN 916 | ISO 4029

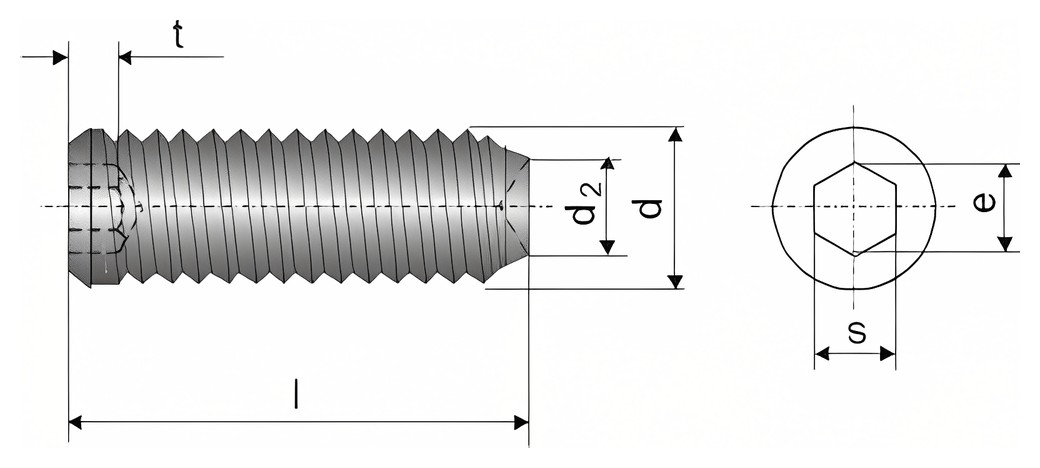

DIN 916 – Technický výkres

Dostupné rozmery:

d	s	e	t min.	Dodávané dĺžky l (mm)
M 1,4	0,7	0,75	1,4
M 1,6	0,7	0,8	1,5
M 2	0,9	1,05	1,7	2, 2,5, 3, 4, 5, 6
M 2,5	1,3	1,1	2	3, 4, 5, 6, 10
M 3	1,5	1,8	2	3, 4, 5, 6, 8, 10, 12, 16, 20
M 4	2	2,3	2,5	3, 4, 5, 6, 8, 10, 12, 16, 20, 25, 30, 40
M 5	2,5	2,9	3	4, 5, 6, 8, 10, 12, 16, 18, 20, 25, 30, 35, 40
M 6	3	3,5	3,5	5, 6, 8, 10, 12, 16, 18, 20, 25, 30, 35, 40, 45, 50, 60
M 8	4	4,7	5	6, 8, 10, 12, 16, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80
M10	5	5,8	6	8, 10, 12, 14, 16, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80
M12	6	7	8	10, 12, 16, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80
M16	8	9,4	10	16, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80, 90, 100
M 20	10	11,05	8	20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90
M 24	12	13,7	10	30, 35, 50, 60, 70, 90, 100
