DIN 913

SK: Nastavovacia skrutka s vnútorným šesťhranom a kužeľovým koncom
EN: Slotted set screw with flat point
DE: Gewindestift mit Innensechskant und Kegelkuppe

Standards: DIN 913 | ISO 4026 | STN 021187

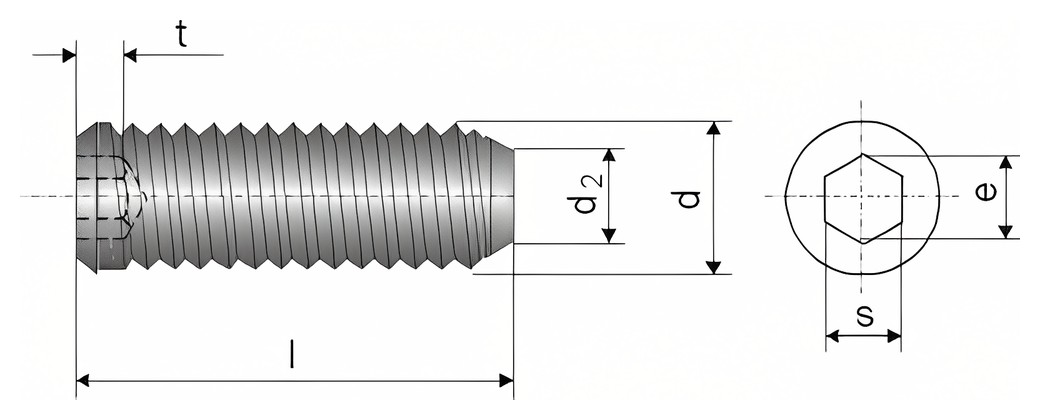

DIN 913 – Technical drawing

Available sizes:

dset min.d 2Lengths l in stock (mm)
M 1,40,70,751,40,6
M 1,60,70,81,50,82, 2,5, 3, 4, 5, 6, 8, 10
M 20,91,051,612, 3, 4, 5, 6, 8, 10
M 2,51,31,121,53, 4, 5, 6, 8, 10
M 31,51,8222, 3, 4, 5, 6, 8, 10, 12, 16, 20, 25
M 422,32,52,53, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20, 25, 30, 35, 40
M 52,52,933,54, 5, 6, 8, 10, 12, 16, 18, 20, 25, 30, 35, 40, 45
M 633,53,544, 5, 6, 8, 10, 12, 14, 16, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70
M 844,755,56, 8, 10, 12, 16, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80, 90, 100, 130
M 1055,8678, 10, 12, 16, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80, 90, 100
M 126788,510, 12, 14, 16, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80, 90, 100
M 1689,4101212, 16, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80, 90, 100
