DIN 82101

SK: Vysokopevnostný strmeň
EN: Forged straight shackle
DE: Geschmiedeter Schäkel

Standards: DIN 82101

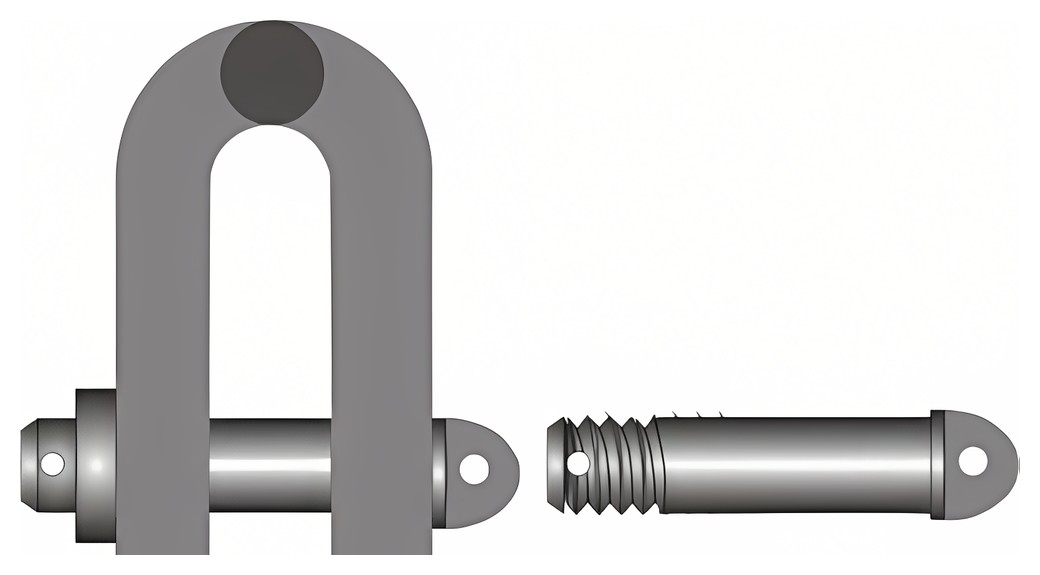

DIN 82101 – Technical drawing

Available sizes:

dLengths l in stock (mm)
M 58, 10, 12, 14, 16, 20, 40, 50
M 610, 12, 14, 15, 16, 18, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 100, 120
M 812, 14, 15, 16, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80, 100, 120, 140, 150, 160, 180, 200
M 1015, 16, 20, 22, 25, 30, 35, 40, 45, 50, 60, 80, 100, 120, 125, 130, 140, 150, 180
M 121, 20, 25, 30, 35, 40, 45, 50, 55, 60, 75, 80, 100, 120, 125, 140, 150, 160, 170, 180, 200, 220, 240, 260, 280, 300, 320, 340, 360, 380, 400, 420, 440, 460, 480, 500, 520, 540, 560, 580, 600, 620, 640, 660, 680, 700, 720, 740, 760
M 141,5
M 151
M 1625, 30, 35, 40, 45, 50, 55, 60, 65, 70, 80, 100, 110, 120, 125, 130, 140, 150, 160, 170, 180, 190, 200, 220, 240, 260, 280, 300, 320, 340, 360, 380, 400, 420, 440, 460, 480, 500, 520, 540, 560, 580, 600, 620, 640, 660, 680, 700
M 171
M 201, 45, 50, 55, 65, 75, 100, 125, 160, 180, 200, 220, 240, 260, 280, 300, 320, 340, 360, 380, 400, 420, 440, 460, 480, 500, 520, 540, 560, 580, 600, 620, 640, 660, 680, 700, 720, 740
M 2475, 100, 220, 240, 260, 280, 300, 320, 340, 360, 380, 400, 420, 440, 460, 480, 500, 520, 540, 560, 580, 600, 620, 640, 660
M 251,5
M 301,5
M 351,5
M 401,5
M 451,5
M 501,5
M 552
M 602
