DIN 7993

SK: Pružný drôtený krúžok
EN: Snap ring
DE: Runddraht-Sprengring

Standards: DIN 7993 | STN 022924

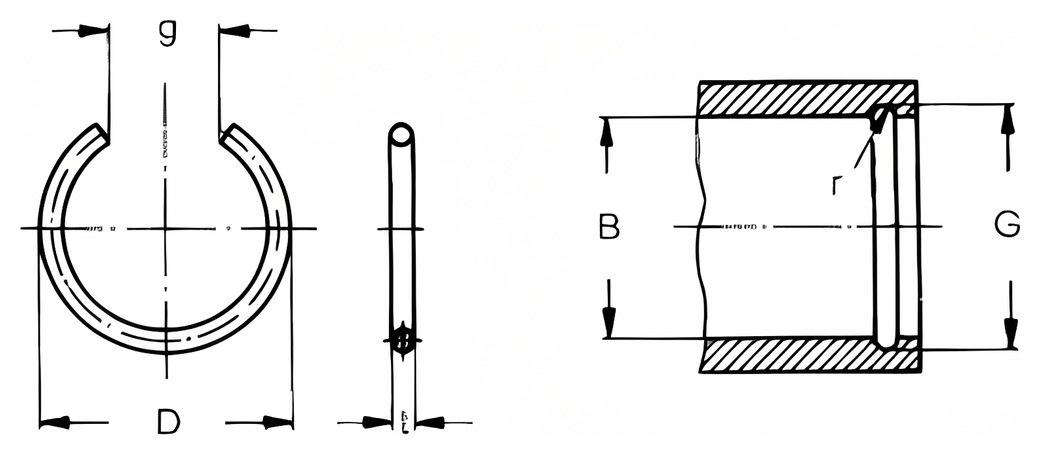

DIN 7993 – Technical drawing

Available sizes:

B	t	D	g	G	r
7	0.8	7.9	4	7.8	0.5
8	0.8	8.9	4	8.8	0.5
10	0.8	10.9	4	10.8	0.5
12	1.0	13.2	6	13.0	0.6
14	1.0	15.2	6	15.0	0.6
16	1.6	17.8	8	17.6	0.9
18	1.6	19.8	8	19.6	0.9
20	2.0	22.3	10	22.0	1.1
22	2.0	24.3	10	24.0	1.1
24	2.0	26.3	10	26.0	1.1
25	2.0	27.3	10	27.0	1.1
26	2.0	28.3	10	28.0	1.1
28	2.0	30.3	10	30.0	1.1
30	2.0	32.3	10	32.0	1.1
32	2.5	34.9	12	34.5	1.4
35	2.5	37.9	12	37.5	1.4
38	2.5	40.9	12	40.5	1.4
40	2.5	42.9	12	42.5	1.4
42	2.5	45.0	16	44.5	1.4
45	2.5	48.0	16	47.5	1.4
48	2.5	51.0	16	50.5	1.4
50	2.5	53.0	16	52.5	1.4
55	3.2	58.9	20	58.2	1.8
60	3.2	63.9	20	63.2	1.8
65	3.2	68.9	20	68.2	1.8
70	3.2	74.0	25	73.2	1.8
75	3.2	79.0	25	78.2	1.8
80	3.2	84.0	25	83.2	1.8
85	3.2	89.0	25	88.2	1.8
90	3.2	94.0	25	93.2	1.8
95	3.2	99.0	25	98.2	1.8
100	3.2	104.2	32	103.2	1.8
105	3.2	109.2	32	108.2	1.8
110	3.2	114.2	32	113.2	1.8
115	3.2	119.2	32	118.2	1.8
120	3.2	124.2	32	123.2	1.8
125	3.2	129.2	32	128.2	1.8
