DIN 7985

SK: Skrutka s pologuľatou hlavou s krížovou drážkou
EN: Cross recessed pan head machine screw
DE: Linsenschraube mit Kreuzschlitz

Standards: DIN 7985 | ISO 7045 | STN 021147

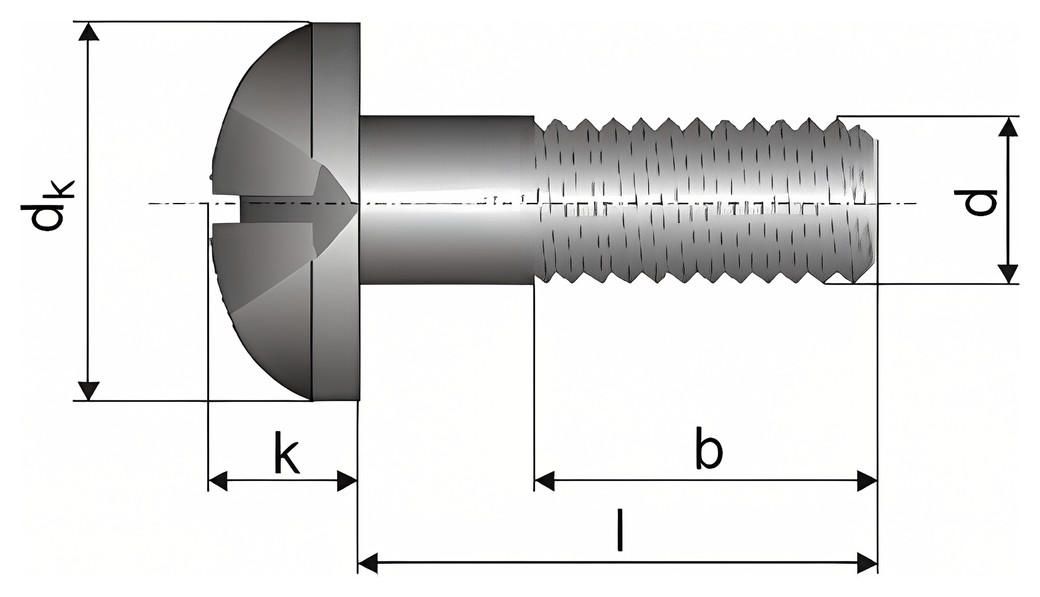

DIN 7985 – Technical drawing

Available sizes:

d	k	d 2	Lengths l in stock (mm)
M 1,4	0,8	2,5
M 1,6	1,3	3,2	2, 3, 4, 5, 6, 8, 10, 12, 16
M 2	1,6	4	2, 3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20
M 2,5	2,12	5	3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20, 25, 30
M 3	2,4	6	3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20, 22, 25, 28, 30, 35, 40, 45, 50, 55
M 4	3,1	8	4, 5, 6, 8, 10, 12, 14, 16, 18, 20, 22, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 80, 85, 90, 100
M 5	3,8	10	6, 8, 10, 12, 14, 16, 18, 20, 22, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80, 90, 100
M 6	4,6	12	8, 10, 12, 14, 16, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 75, 80, 90, 100
M 8	6	16	10, 12, 16, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80, 90
