SK: Kužeľový kolík so závitovým čapom
EN: Taper pin with external thread
DE: Kegelstift mit Gewindezapfen

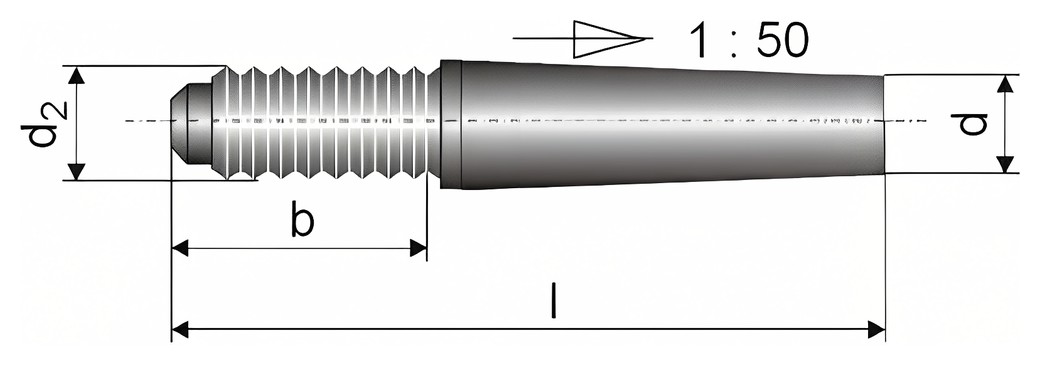

Standards: DIN 7977 | ISO 8737
Available sizes:
| d | b | d 2 | Lengths l in stock (mm) |
|---|
| 5 | 14 | M 5 | 40, 45, 50 |
|---|
| 6 | 18 | M 6 | 40, 45, 50, 55, 60 |
|---|
| 8 | 22 | M 8 | 50, 55, 60, 65, 75, 85, 100 |
|---|
| 10 | 24 | M 10 | 50, 60, 65, 75, 85, 100, 120 |
|---|
| 12 | 27 | M 12 | 75, 80, 85, 100, 120, 140 |
|---|
| 14 | 30 | M 12 | 85, 100 |
|---|
| 16 | 35 | M 16 | 85, 100, 120, 140, 160 |
|---|
| 20 | 35 | M 16 | 100, 120, 140, 160, 190 |
|---|
