DIN 7965

SK: Závitová vložka
EN: Screwed insert
DE: Einschraubmutter (Schraubendübel)

Standards: DIN 7965

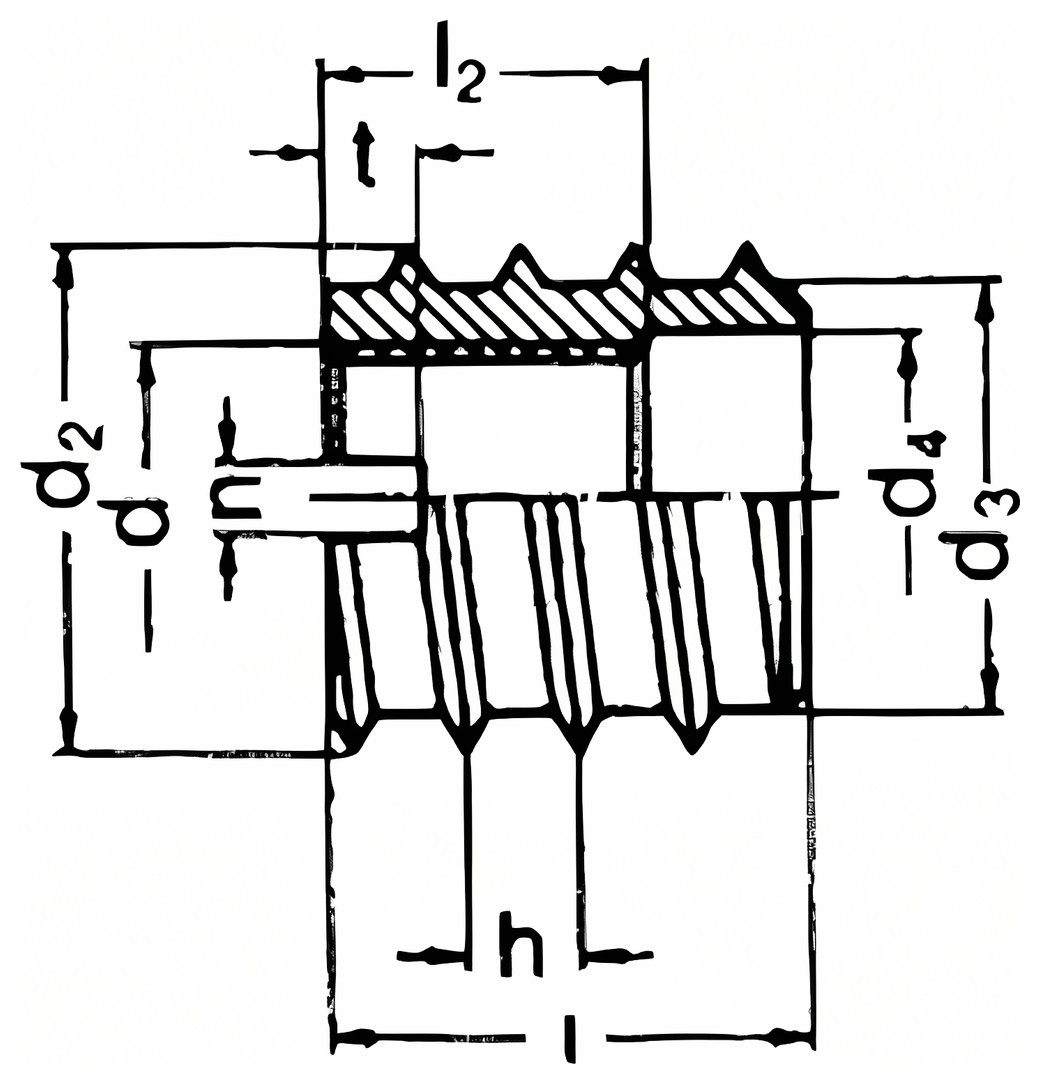

DIN 7965 – Technical drawing

Available sizes:

d mm	l mm	d 2 mm	d 3 mm	d 4	l 2	n	t	h	Lengths l in stock (mm)
M 4	10	8	5,5	4,5	6	1,2	2	2,5	8, 10, 12, 15
M 5	12	10	7,5	6	7	1,6	3	3,5	10, 12, 15, 18, 20
M 6	15	12	9,5	7,5	9	2	3	4	12, 15, 18, 20, 25, 30
M 8	18	16	12,5	10	11	2,5	4	5	18, 30
M 10	20	18,5	15	12	13	3	5	5	20, 25, 30, 40
M 12	25	22	18	15	16	3	5	5	25, 30
