DIN 7513

SK: Samorezná skrutka so šesťhrannou hlavou s drážkou
EN: Hexagon head thread cutting screw
DE: Gewinde-Schneidschraube mit Schlitz

Standards: DIN 7513

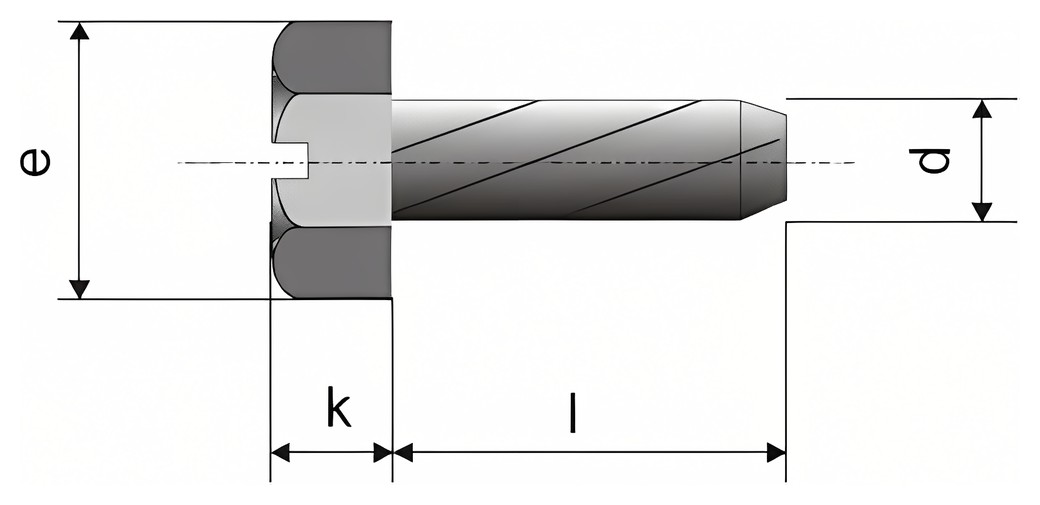

DIN 7513 – Technical drawing

Available sizes:

d	s	e min.	k	d k
M 5	8	8,87	3,5	4,5
M 6	10	11,05	4	5,5
M 8	13	14,38	5,5	7,4

d	d 2	k	Lengths l in stock (mm)
M 2,5	4,5	1,6
M 3	5,5	2	6, 8, 10, 12, 16, 20
M 4	7	2,6	8, 10, 12, 16, 20, 25
M 5	8,5	3,3	10, 12, 16, 20, 25, 30
M 6	10	3,9	12, 16, 20, 25, 30, 35
