SK: Samovrtná skrutka so zapustnou hlavou
EN: Self drilling screw with flat countersunk head
DE: Senk-Bohrschraube
Standards: DIN 7504 P | ISO 15482
Available sizes:

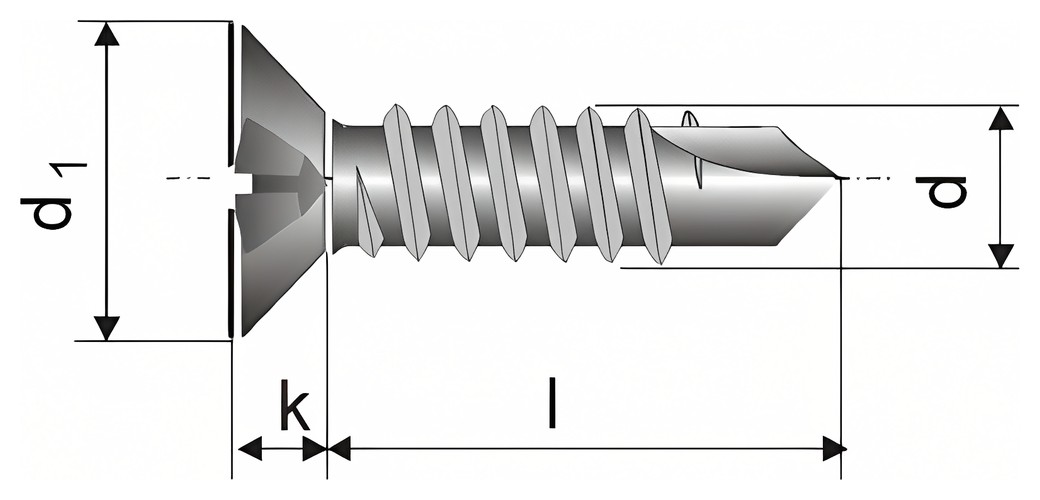

| d | d 1 max. | k | Key size | Lengths l in stock (mm) |
|---|
| 2,9 | 5,5 | 1,7 | 1 | 13, 16, 19 |
|---|
| 3,5 | 6,8 | 2,1 | 2 | 13, 16, 19, 22, 25 |
|---|
| 3,9 | 7,5 | 2,3 | 2 | 13, 16, 19, 22, 25, 32, 38, 45 |
|---|
| 4,2 | 8,1 | 2,5 | 2 | 13, 16, 19, 22, 25, 32, 38, 45, 50 |
|---|
| 4,8 | 9,5 | 3 | 2 | 16, 19, 22, 25, 32, 38, 45, 50 |
|---|
| 5,5 | 10,8 | 3,4 | 3 | 25, 32, 38, 45, 50 |
|---|
| 6,3 | 12,4 | 3,8 | 3 | 25, 32, 38, 45, 50, 60, 70, 80 |
|---|
