DIN 7504 N

SK: Samovrtná skrutka s pologuľatou (šošovkovitou) hlavou
EN: Self drilling screw with tapping screw thread
DE: Linsen-Bohrschraube

Standards: DIN 7504 N

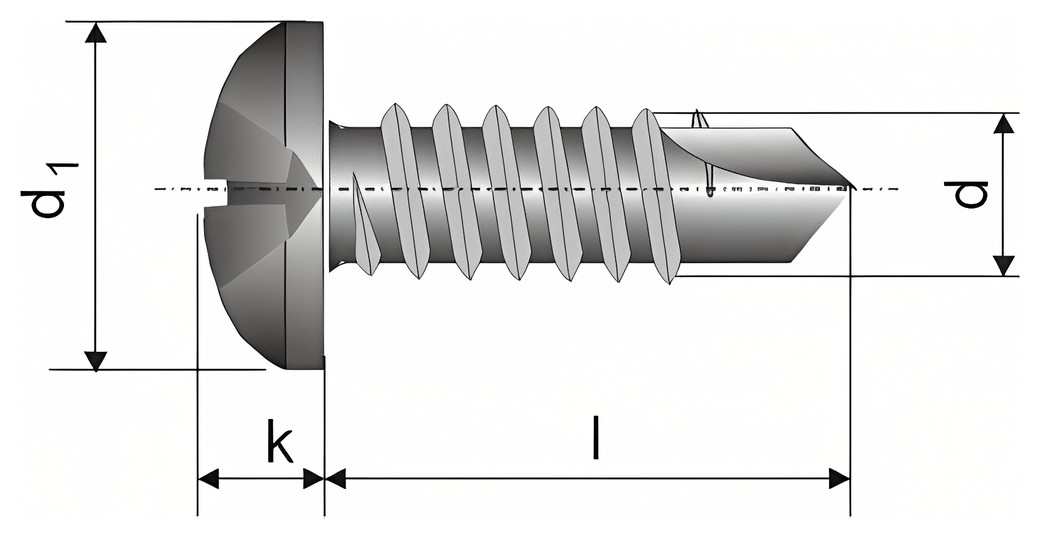

DIN 7504 N – Technical drawing

Available sizes:

d	d 1 max.	k max.	PH	Lengths l in stock (mm)
2,9	5,6	2,2	1	9,5, 13, 16, 19
3,5	6,9	2,6	2	9,5, 13, 16, 19, 22, 25, 32
3,9	7,5	2,8	2	9,5, 13, 16, 19, 22, 25, 32, 38, 45, 50
4,2	8,2	3,05	2	13, 16, 19, 22, 25, 32, 38, 45, 50
4,8	9,5	3,55	2	13, 16, 19, 22, 25, 32, 38, 45, 50, 60, 70, 80, 90, 100, 110, 120
5,5	10,8	3,95	3	16, 19, 22, 25, 32, 38, 45, 50, 60, 70, 80
6,3	12,5	4,55	3	16, 19, 22, 25, 32, 38, 45, 50, 60, 70, 80, 90, 100
