SK: Samovrtná skrutka so šesťhrannou hlavou s prírubou
EN: Hexagon head self drilling screw
DE: Sechskantbohrschraube mit Flansch

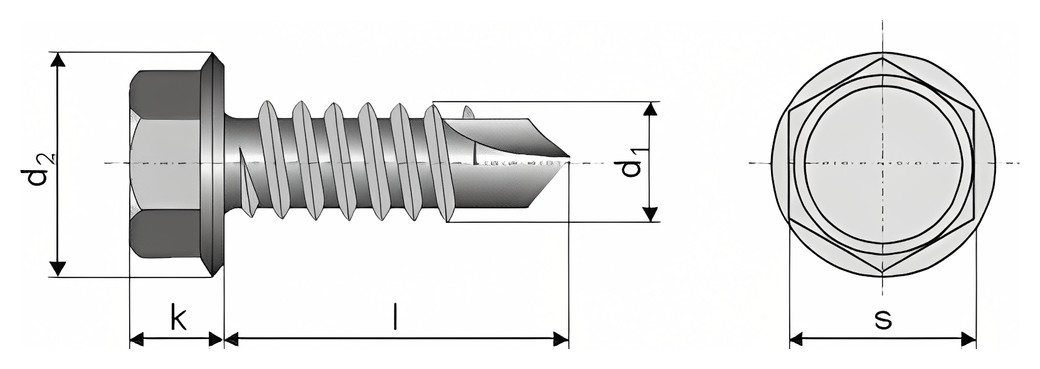

Standards: DIN 7504 K | ISO 15480
Available sizes:
| d | s | d 2 max. | k min | k max. | Lengths l in stock (mm) |
|---|
| 3,5 | 5,5 | 8,3 | 3,2 | 3,45 | 9,5, 13, 16, 19, 22, 25 |
|---|
| 3,9 | 5,5 | 8,3 | 3,2 | 3,45 | 13, 16, 19, 22, 25, 32 |
|---|
| 4,2 | 7 | 8,8 | 4 | 4,25 | 13, 16, 19, 22, 25, 32, 38 |
|---|
| 4,8 | 8 | 10,5 | 4,15 | 4,45 | 13, 16, 19, 22, 25, 32, 38, 45, 50, 60, 70, 80 |
|---|
| 5,5 | 8 | 11 | 5,15 | 5,45 | 16, 19, 22, 25, 32, 38, 45, 50, 60, 70, 80, 90, 100 |
|---|
| 6,3 | 10 | 13,2 | 6,15 | 6,45 | 16, 19, 22, 25, 32, 38, 45, 50, 60, 70, 80, 90, 100, 110, 120, 130, 140, 150, 160 |
|---|
