DIN 7500 C

SK: Závitotvarniaca skrutka s pologuľatou hlavou
EN: Slotted cheese head thread forming screw
DE: Gewindefurchende Linsenschraube

Standards: DIN 7500 C

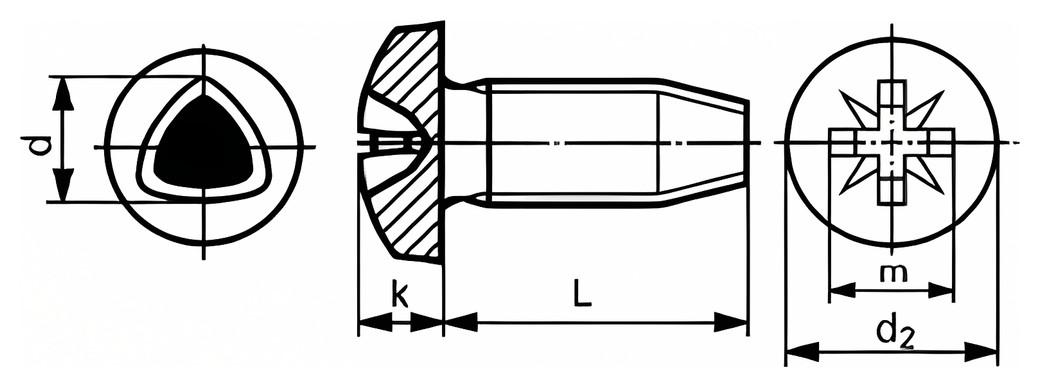

DIN 7500 C – Technical drawing

Available sizes:

dd 2km (PZ-Bit)Lengths l in stock (mm)
M 2,552PZ 14, 5, 6, 8, 10, 12, 16, 20
M 362,4PZ 14, 5, 6, 8, 10, 12, 16, 20, 25, 30
M 483,1PZ 26, 8, 10, 12, 16, 20, 25, 30, 35, 40
M 5103,8PZ 26, 8, 10, 12, 16, 20, 25, 30, 35, 40
M 6124,6PZ 38, 10, 12, 16, 20, 25, 30, 35, 40
