SK: Skrutka so šesťhrannou hlavou s prírubou
EN: Hexagon flange bolt
DE: Sechskantschraube mit Flansch
Standards: DIN 6921 | ISO 15071
Available sizes:

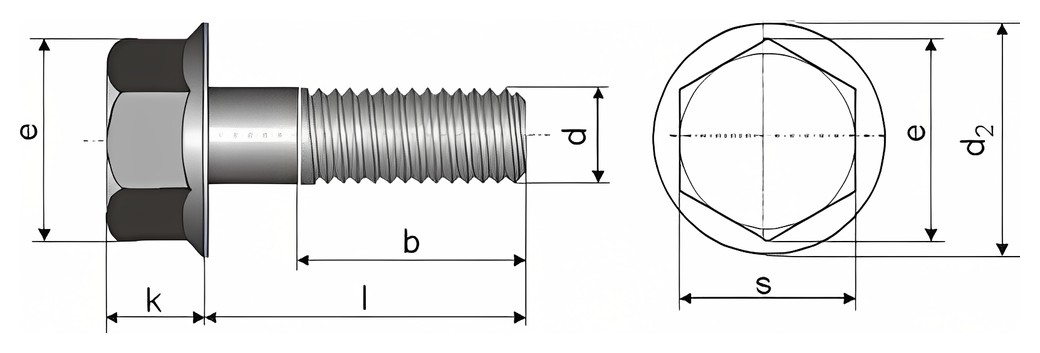

| d | s | e | k | b | d 2 | Lengths l in stock (mm) |
|---|
| M 5 | 8 | 8,87 | 4,3 | 14 | 11,2 | 10, 12, 16, 20, 25, 30 |
|---|
| M 6 | 10 | 11,05 | 5,5 | 18 | 14,2 | 10, 12, 16, 20, 25, 30, 35, 40, 45 |
|---|
| M 8 | 13 | 14,38 | 7 | 22 | 18,2 | 10, 12, 16, 20, 25, 30, 35, 40, 45, 50, 60 |
|---|
| M 10 | 15 | 16,64 | 7,9 | 26 | 21 | 16, 20, 25, 30, 35, 40, 45, 50, 60 |
|---|
| M 12 | 17 | 18,9 | 8,7 | 30 | 24 | 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100 |
|---|
| M 16 | 22 | 24,49 | 11,2 | 34 | 31 | 30, 35, 40, 45, 50, 60, 65, 70 |
|---|
