DIN 6798 A/J

SK: Vejárová podložka s vonkajším a vnútorným ozubením
EN: Serrated lock washer external/internal teeth
DE: Fächerscheibe mit Aussen-/Innenverzahnung

Standards: DIN 6798 A/J | STN 021746

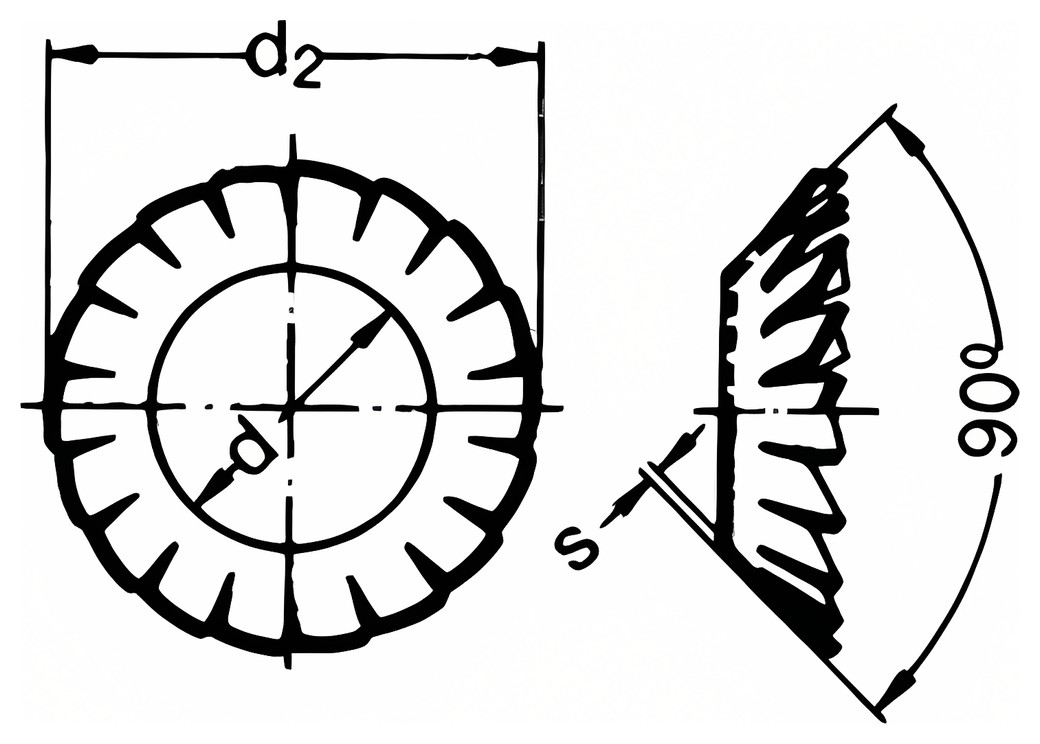

DIN 6798 A/J – Technical drawing

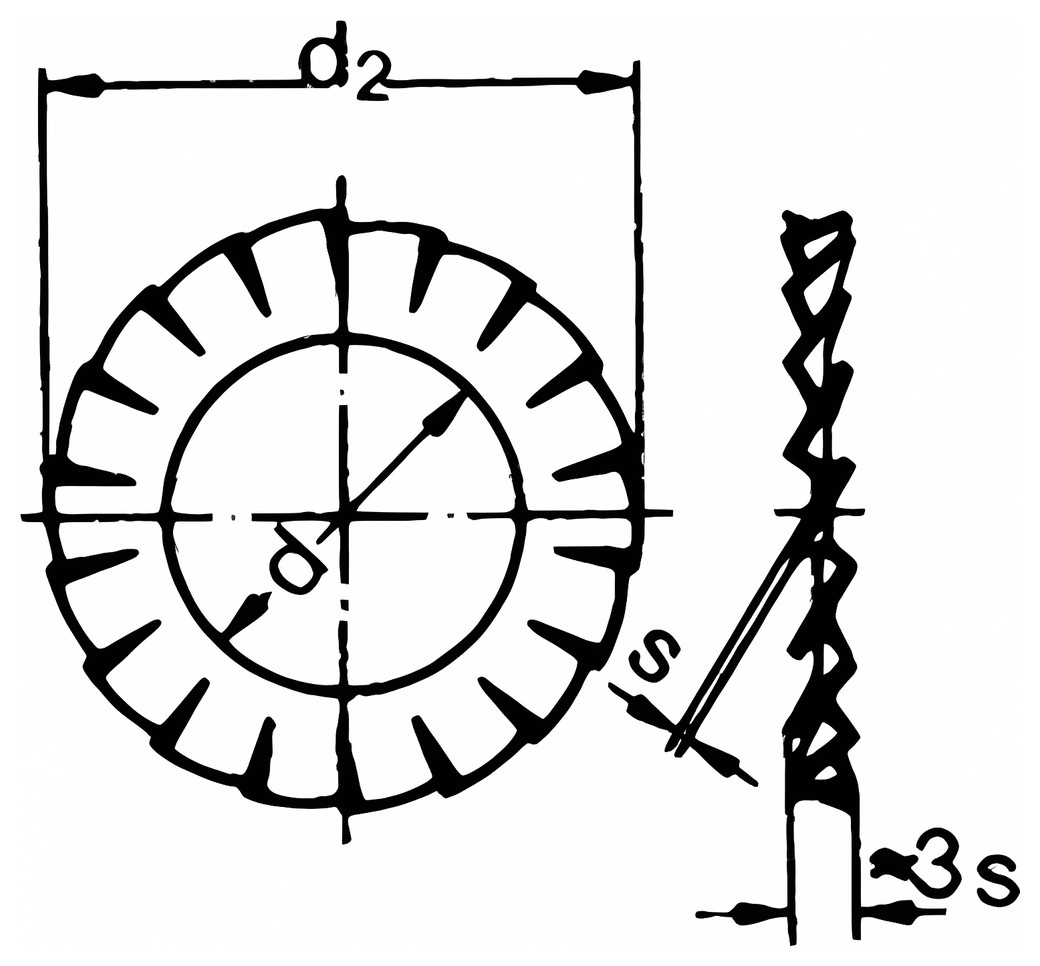

DIN 6798 A/J – Technical drawing

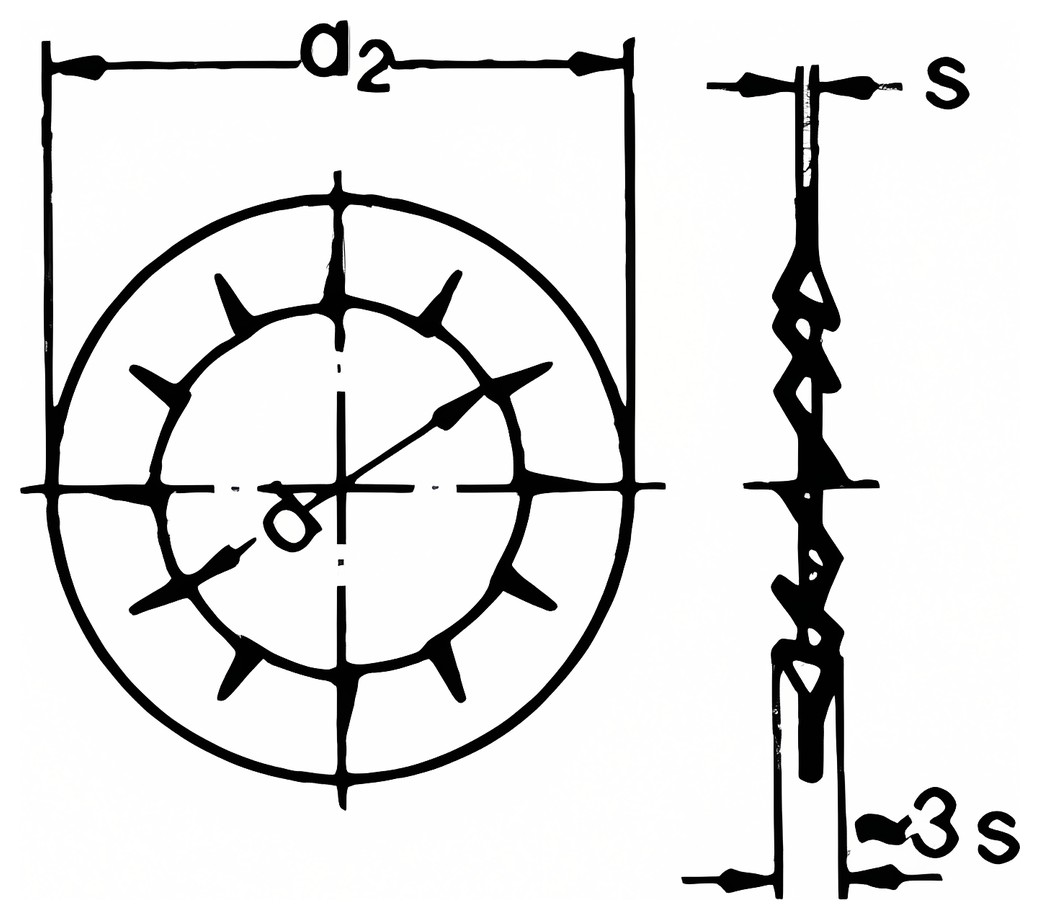

DIN 6798 A/J – Technical drawing

Available sizes:

d mmMsd 2 mm
2,2M 20,34,5
2,5M 2,30,45
2,7M 2,50,45,5
3,2M 30,46
4,3M 40,58
5,1M 50,59
5,3M 50,610
6,4M 60,711
8,2M 80,814
8,4M 80,815
10,5M 100,918
12,5M 12120,5
14,5M 14124
16,5M 161,226
19M 181,430
21M 201,433
23M 221,536
25M 241,538
28M 271,644
31M 301,648
d mmMsd 2 mm
2,5M 2,30,45
2,7M 2,50,45,5
3,2M 30,46
4,3M 40,58
5,1M 50,59
5,3M 50,610
6,4M 60,711
8,2M 80,814
8,4M 80,815
10,5M 100,918
12,5M 12120,5
14,5M 14124
16,5M 161,226
19M 181,430
21M 201,433
23M 221,536
25M 241,538
28M 271,644
d mmMsd 2 mm
3,2M 30,26
4,3M 40,258
5,3M 50,39,8
6,4M 60,411,8
8,4M 80,415,3
10,5M 100,519
12,5M 120,523
