DIN 660

SK: Nit s polguľovou hlavou
EN: Round head rivet
DE: Halbrundniet

Standards: DIN 660

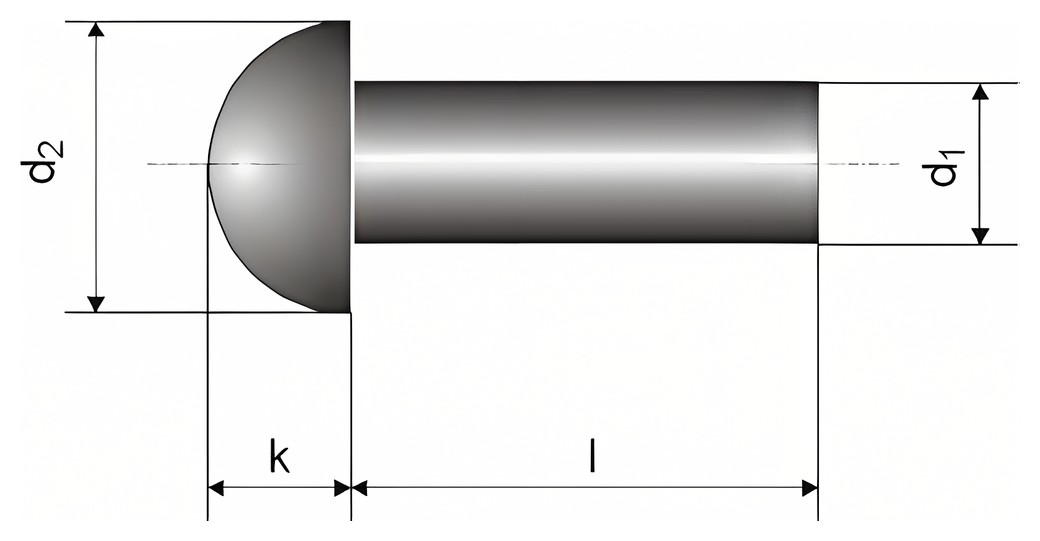

DIN 660 – Technical drawing

Available sizes:

d 1	k	r	d 2	Lengths l in stock (mm)
2	1,2	1,9	3,5	3, 4, 5, 6, 8, 10, 12, 16, 20
2,5	1,5	2,4	4,4	3, 4, 5, 6, 8, 10, 12, 16, 20
3	1,8	2,8	5,2	4, 5, 6, 8, 10, 12, 16, 18, 20, 25, 30, 40
4	2,4	3,8	7	5, 6, 8, 10, 12, 16, 18, 20, 22, 25, 30, 35, 40, 45, 50
5	3	4,6	8,8	6, 8, 10, 12, 16, 18, 20, 22, 25, 28, 30, 35, 40, 45, 50, 55, 60
6	3,6	5,7	10,5	10, 12, 16, 18, 20, 22, 25, 30, 32, 35, 40, 45, 50, 55, 60, 70
8	4,8	7,5	14	10, 12, 16, 18, 20, 22, 25, 30, 32, 35, 40, 45, 50, 55, 60
