DIN 653

SK: Skrutka s rýhovanou hlavou
EN: Knurled thin thum screw
DE: Rändelschraube, niedrige Form

Normy: DIN 653 | STN 021162

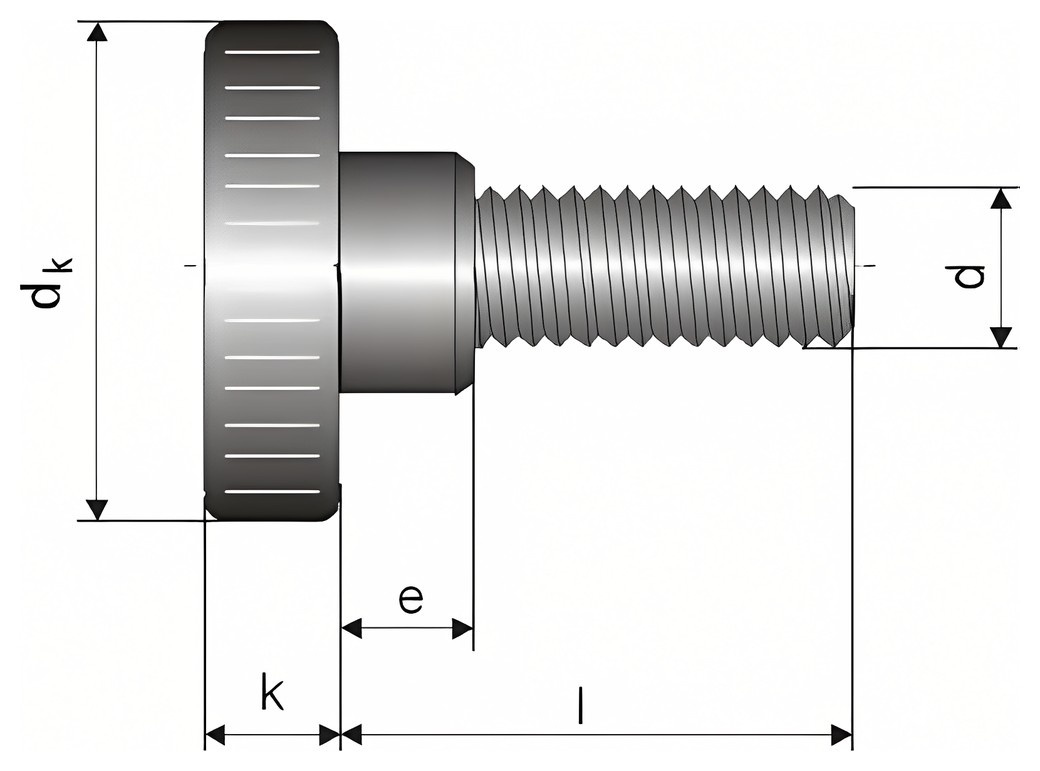

DIN 653 – Technický výkres

Dostupné rozmery:

d	d k	k	e	Dodávané dĺžky l (mm)
M3	12	2.5	2	6, 8, 10, 12, 16
M4	16	3.5	3	8, 10, 12, 16, 20, 25, 30, 35
M5	20	4	3	10, 12, 16, 20, 25, 30, 35, 40, 50
M6	24	5	4	12, 16, 20, 25, 30, 35, 40, 45
M8	30	6	5	10, 16, 20, 25, 30, 35, 40, 45, 50, 60
M10	36	8	6	20, 25, 30, 40, 50, 60, 70, 80
