DIN 6325

SK: Valcový kolík, kalený
EN: Parallel pin hardened
DE: Zylinderstift, gehärtet

Standards: DIN 6325 | ISO 8734 | STN 022152

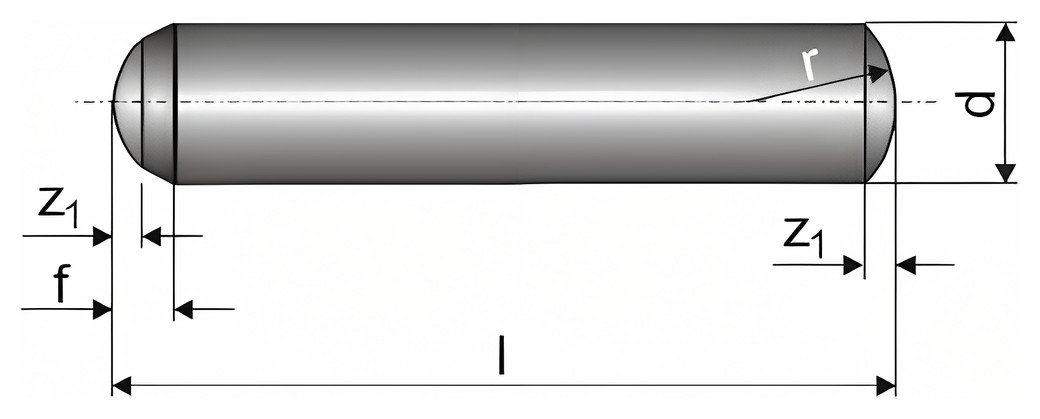

DIN 6325 – Technical drawing

Available sizes:

d m6frz 1z 2Lengths l in stock (mm)
10,410,150,084, 5, 6, 8, 10, 12
1,50,51,60,230,124, 5, 6, 8, 10, 12, 14, 16, 20
20,620,30,174, 5, 6, 8, 10, 12, 14, 16, 18, 20, 24, 30, 32, 50
2,50,72,50,40,256, 8, 10, 12, 14, 16, 18, 20, 24, 26, 28
30,830,450,36, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 40, 45, 50
4140,590,416, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 36, 40, 45, 50, 60
51,25––8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 36, 40, 45, 50, 55, 60, 70
61,56––8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 36, 40, 45, 50, 55, 60, 70, 80, 90, 100
81,88––10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 36, 40, 45, 50, 55, 60, 70, 80, 90, 100, 120
10210––16, 20, 22, 24, 26, 28, 30, 32, 36, 40, 45, 50, 55, 60, 70, 80, 90, 100, 110, 120
122,512––20, 24, 26, 28, 30, 32, 36, 40, 45, 50, 55, 60, 70, 80, 90, 100, 110, 120
