DIN 609

SK: Lícovaná skrutka so šesťhrannou hlavou
EN: Hexagon fit bolt (long threaded portion)
DE: Sechskantschraube mit Paßschaft (langer Gewindezapfen)

Standards: DIN 609 | STN 021111

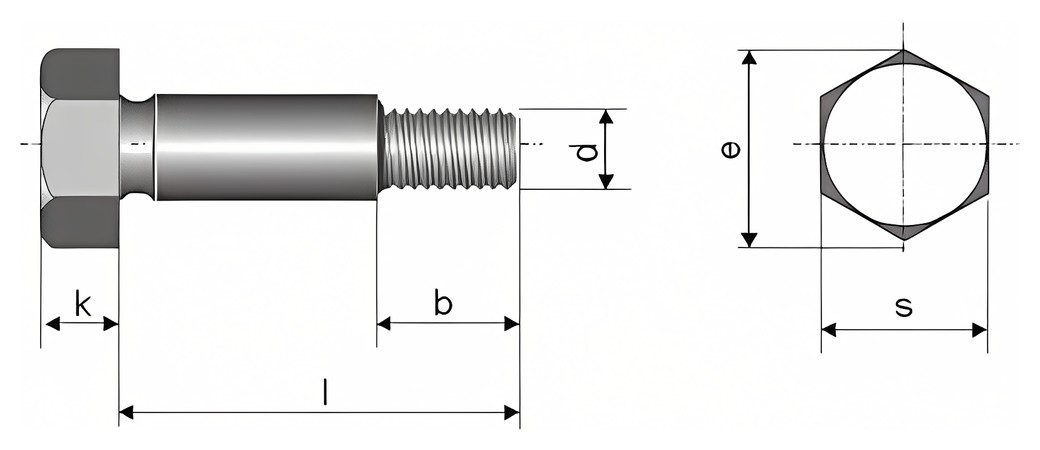

DIN 609 – Technical drawing

Available sizes:

d	k	e	s max.	b (< 50 mm)	b (< 150 mm)	b (< 200 mm)	Lengths l in stock (mm)
M8	5.3	14.38	13	14.5	16.5	21.5	25, 30, 32, 35, 40, 45, 50, 60, 70
M10	6.4	17.77	16	17.5	19.5	24.5	30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 90, 100
M12	7.5	19.85	18	20.5	22.5	27.5	30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 90, 100
M14	8.8	22.78	21	22	24	29	35, 40, 45, 50, 60, 65, 70, 80
M16	10	26.17	24	25	27	32	40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100, 120
M20	12.5	32.95	30	28.5	30.5	35.5	45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100, 110, 120, 130, 140, 150, 160, 180, 200
M24	15	39.55	36	–	36.5	41.5	60, 65, 70, 75, 80, 85, 90, 100, 110, 120, 130, 140, 150, 160, 180, 200
M30	19	50.85	46	–	43	48	70, 75, 80, 85, 90, 100, 110, 120, 130, 140, 150, 160, 200
