DIN 603

SK: Skrutka s nízkou zaoblenou hlavou a štvorhranom
EN: Mushroom head square neckt bolt (cup square neck bolt, cup square bolt, coach bolt)
DE: Flachrundschraube mit Vierkantansatz

Normy: DIN 603 | STN 021319

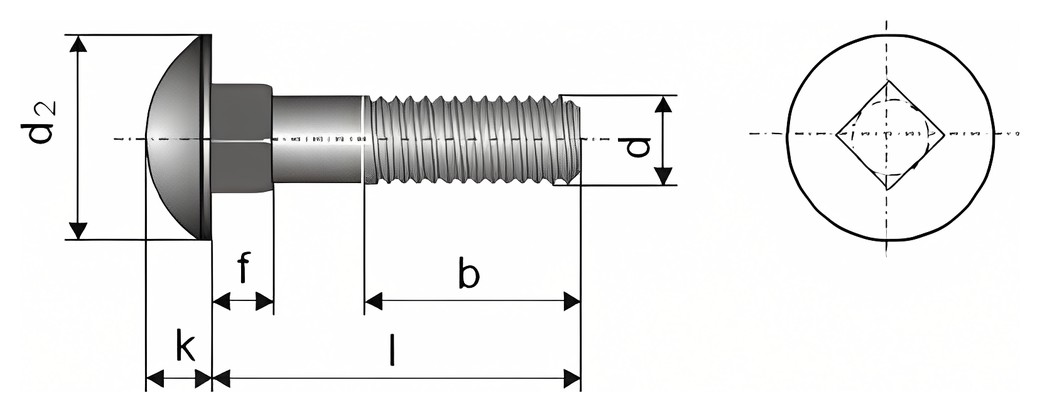

DIN 603 – Technický výkres

Dostupné rozmery:

d	v	b (l < 120 mm)	b (l > 120 mm)	f	k	d 2	r	Dodávané dĺžky l (mm)
M 5	5	16	22	3,5	3	13	10,7	16, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 80, 90
M 6	6	18	24	4	3,5	16	12,6	10, 12, 16, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 90, 100, 110, 120, 130, 140, 150
M 8	8	22	28	5	4,5	20	16	16, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 90, 100, 110, 120, 130, 140, 150, 160, 170, 180, 190, 200
M 10	10	26	32	6	5	24	19,2	20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 90, 100, 110, 120, 130, 140, 150, 160, 170, 180, 190, 200, 220, 240, 260, 280, 300
M 12	12	30	36	8	6,5	30	24,1	25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 90, 100, 110, 120, 130, 140, 150, 160, 170, 180, 190, 200, 220, 240, 250, 260, 280, 300, 320, 340, 360, 380, 400
M 16	16	38	44	12	8,5	38	29,3	35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 90, 100, 110, 120, 130, 140, 150, 160, 170, 180, 190, 200, 220, 240, 260, 280, 300, 320, 340, 360, 380, 400
