DIN 580

SK: Závesná skrutka
EN: Lifting eye bolt
DE: Ringschraube

Standards: DIN 580 | STN 021369

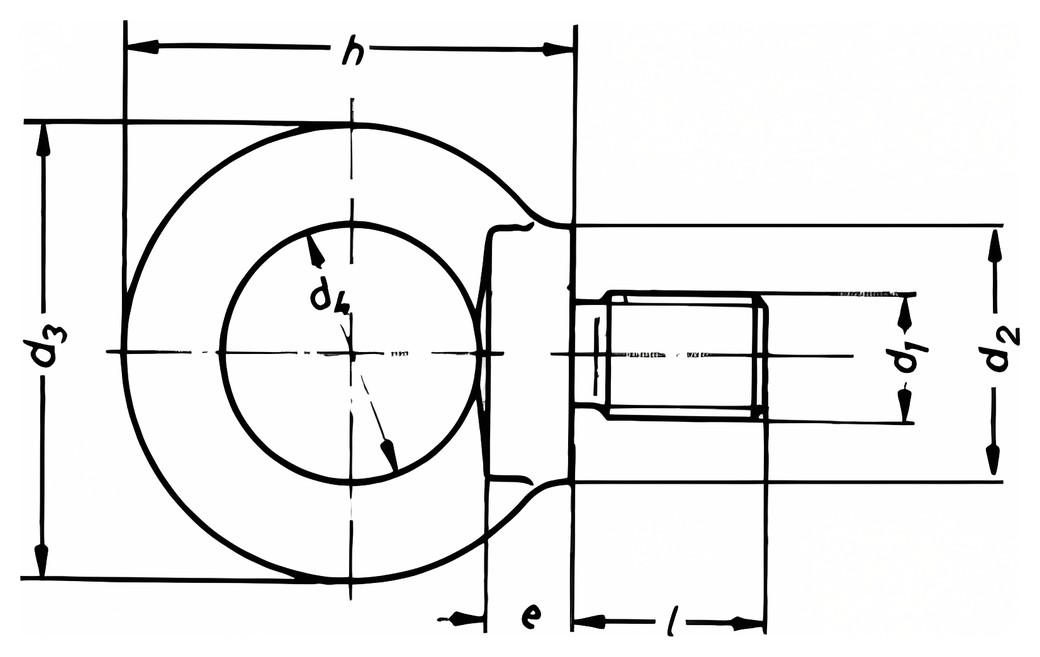

DIN 580 – Technical drawing

Available sizes:

d mm	l mm	h	k	d 2 mm	d 3 mm	d 4
M 8	13	36	8	20	36	20
M 10	17	45	10	25	45	25
M 12	20,5	53	12	30	54	30
M 14	27	62	14	35	63	35
M 16	27	62	14	35	63	35
M 20	30	71	16	40	72	40
M 22	35	84	18	45	81	45
M 24	36	90	20	50	90	50
M 30	45	109	24	65	108	60
M 36	54	128	28	75	126	70
M 42	63	147	32	85	144	80
M 56	78	187	42	110	184	100
