DIN 571

SK: Skrutka do dreva so šesťhrannou hlavou
EN: Hexagon head wood screw
DE: Sechskant-Holzschraube

Normy: DIN 571 | STN 021810

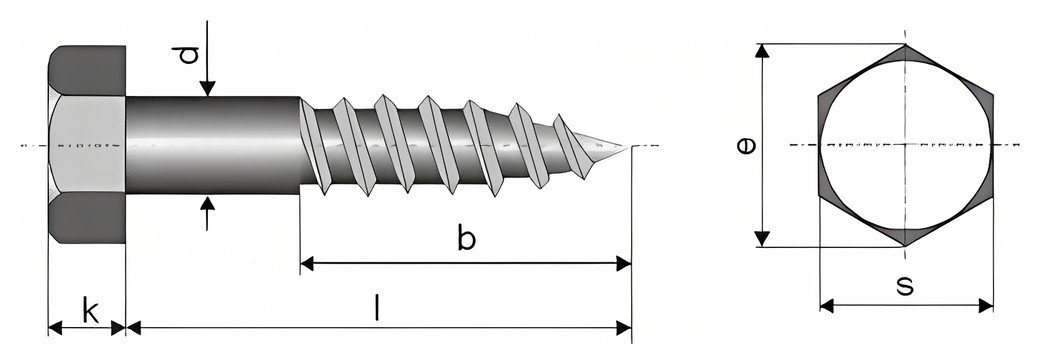

DIN 571 – Technický výkres

Dostupné rozmery:

d	k	s	e min.	Dodávané dĺžky l (mm)
5	3,5	8	8,63	20, 25, 30, 35, 40, 45, 50, 60, 70
6	4	10	10,89	20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 90, 100, 110, 120, 130, 140
8	5,5	13	14,2	25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 90, 100, 110, 120, 130, 140, 150, 160, 180, 200
10	7	17	18,72	30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 90, 100, 110, 120, 130, 140, 150, 160, 180, 200, 220, 240, 260, 280, 300
12	8	19	20,88	40, 45, 50, 60, 65, 70, 75, 80, 90, 100, 110, 120, 130, 140, 150, 160, 180, 200, 220, 240, 260, 280, 300, 320, 340, 360, 380
16	10	24	26,17	60, 70, 80, 90, 100, 110, 120, 130, 140, 150, 160, 180, 200, 220, 240, 260, 280, 300
20	13	30	32,95	80, 90, 100, 110, 120, 130, 140, 150, 160, 180, 200
