SK: Skrutka so šesťhrannou hlavou, redukovaný koniec
EN: Hexagon set screw with dog point
DE: Sechskantschraube (kleiner Kopf) mit Zapfen
Standards: DIN 561 | STN 021115
Available sizes:

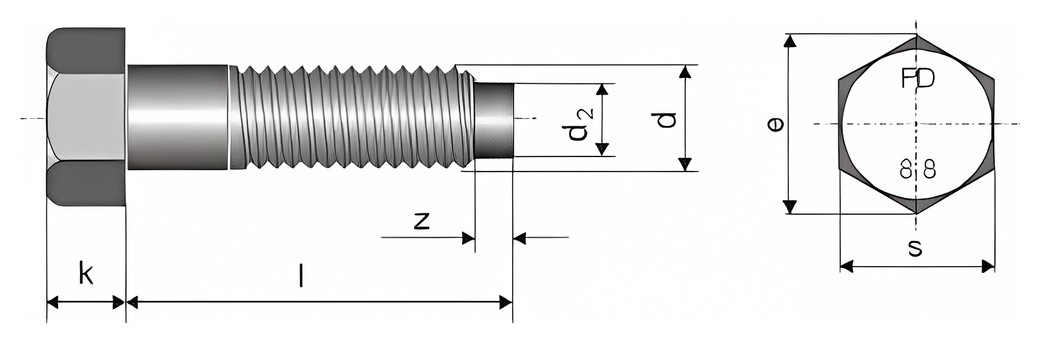

| d mm | s | k | d 2 | z (max.) | Lengths l in stock (mm) |
|---|
| M 6 | 8 | 5 | 4 | 3 | 12, 16, 20, 25, 30 |
|---|
| M 8 | 10 | 6 | 5,5 | 4 | 16, 18, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80 |
|---|
| M 10 | 13 | 7 | 7 | 5 | 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100 |
|---|
| M 12 | 17 (ISO 16) | 9 | 8,5 | 6 | 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100, 120 |
|---|
| M 16 | 19 (ISO 18) | 11 | 12 | 8 | 30, 35, 40, 45, 50, 60, 70, 80, 90, 100, 120, 160 |
|---|
| M 20 | 24 | 14 | 15 | 10 | 40, 50, 60, 70, 80, 90, 100, 120, 140 |
|---|
