DIN 480

SK: Skrutka so štvorhrannou hlavou s nákružkom
EN: Square head bolt with collar
DE: Vierkantschraube mit Bund

Standards: DIN 480

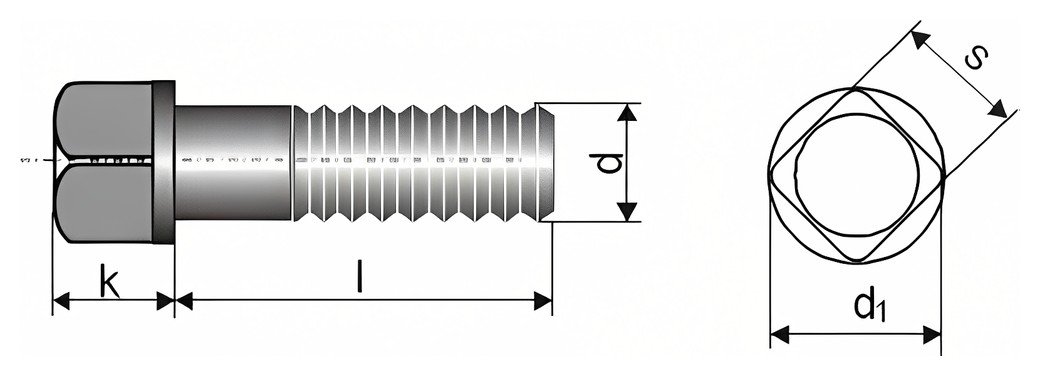

DIN 480 – Technical drawing

Available sizes:

d	e = d 1	s	k	Lengths l in stock (mm)
M10	13	10	13	50, 60
M12	17	13	16	50
M16	22	16	20	50, 60, 70, 80
M20	28	21	25	60
