DIN 464

SK: Skrutka s ryhovanou (vrúbkovanou) hlavou
EN: Knurled thumb screw
DE: Rändelschraube

Normy: DIN 464

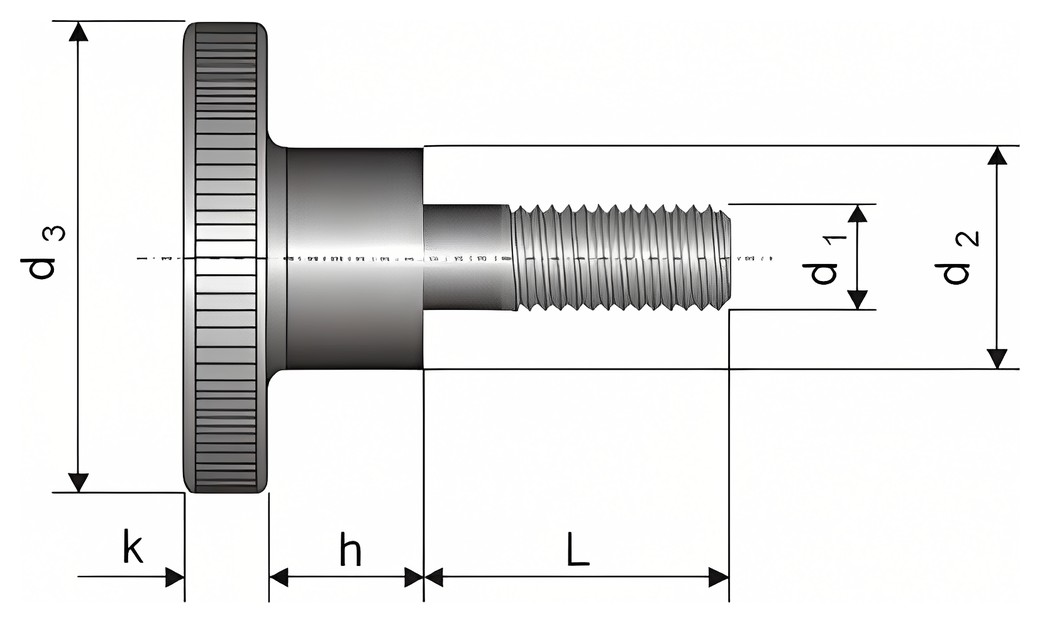

DIN 464 – Technický výkres

Dostupné rozmery:

d 1	h	k	d 2	d 3	Dodávané dĺžky l (mm)
M 3	7,5	2,5	6	12	5, 6, 8, 10, 12, 16
M 4	9,5	3,5	8	16	5, 6, 8, 10, 12, 16, 18, 20, 25, 30
M 5	11,5	4	10	20	8, 10, 12, 16, 20, 25, 30, 40
M 6	15	5	12	24	8, 10, 12, 16, 20, 25, 30, 35, 40
M 8	18	6	16	30	10, 12, 16, 20, 25, 30, 35, 40
