SK: Otočná skrutka s okom
EN: Eye bolt
DE: Augenschraube

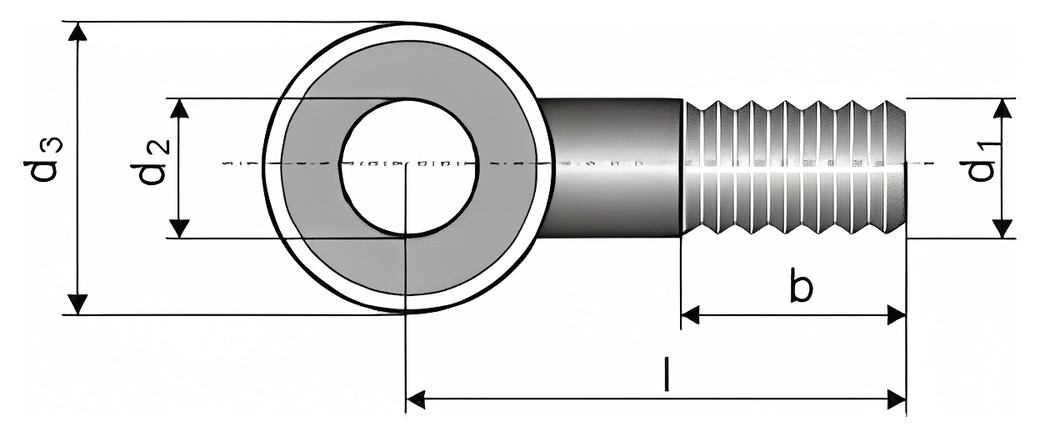

Standards: DIN 444 | STN 021167
Available sizes:
| d 1 (mm) | M | s | d 2 (mm) | d 3 (mm) | b (< 120 mm) | b (> 120 mm) |
|---|
| 5,5 | M 5 | – | 5 | – | – | – |
|---|
| 6,6 | M 6 | 6,85 | 6 | 13,57 | 18 | – |
|---|
| 9 | M 8 | 8,85 | 8 | 17,57 | 22 | 28 |
|---|
| 11 | M 10 | 11,82 | 10 | 19,48 | 26 | 32 |
|---|
| 13,5 | M 12 | 13,82 | 12 | 24,48 | 30 | 36 |
|---|
| 17,5 | M 16 | 16,82 | 16 | 31,38 | 38 | 44 |
|---|
| 22 | M 20 | 21,79 | 18 | 39,38 | 46 | 52 |
|---|
| 24 | M 22 | – | – | – | – | – |
|---|
| 26 | M 24 | 24,79 | 22 | 44,38 | 54 | – |
|---|
| 30 | M 27 | – | – | – | – | – |
|---|
