SK: Kužeľový kolík so závitovým čapíkom
EN: Taper pin with thread end
DE: Kegelstift mit Gewindezapfen

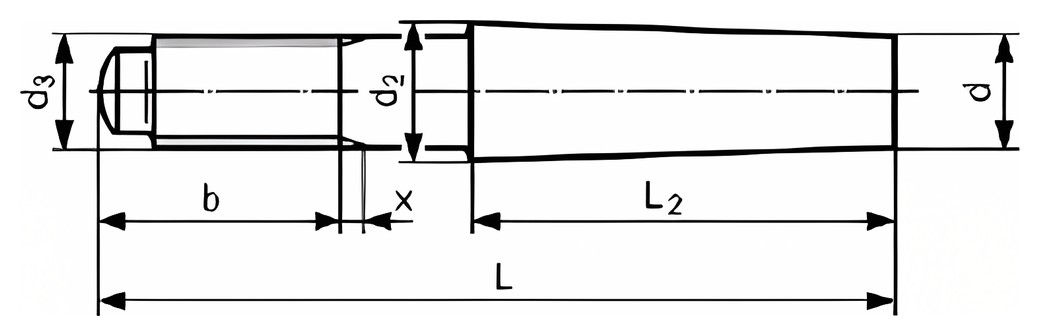

Standards: DIN 258 | STN 022154
Available sizes:
| d | d 2 | d 3 | b | L 2 | Lengths l in stock (mm) |
|---|
| 5 | 5,5 | M 5 | 14 | 25 | 40, 50 |
|---|
| 6 | 6,6 | M 6 | 18 | 30 | 45, 50, 55, 60 |
|---|
| 8 | 8,8 | M 8 | 22 | 40 | 55, 60, 65, 75 |
|---|
| 10 | 10,9 | M 10 | 24 | 45 | 65, 75, 85, 100 |
|---|
| 12 | 13,1 | M 12 | 27 | 55 | 85, 100, 120, 140 |
|---|
| 16 | 17,4 | M 16 | 35 | 72 | 100, 120, 140, 160 |
|---|
| 20 | 21,7 | M 16 | 35 | 85 | 120, 140, 190 |
|---|
