DIN 1481

SK: Pružný upínací kolík
EN: Spring pin heavy duty
DE: Spannstift - schwere Ausführung

Standards: DIN 1481 | ISO 8752

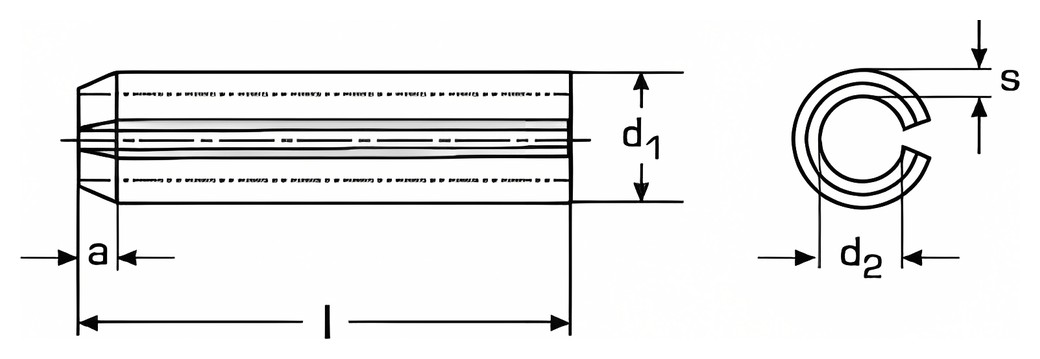

DIN 1481 – Technical drawing

Available sizes:

d 1sd 2Lengths l in stock (mm)
10,20,84, 5, 6, 8, 10, 12, 14, 16, 20
1,50,31,14, 5, 6, 8, 10, 12, 14, 16, 18, 20
20,41,54, 5, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30
2,50,51,84, 5, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30
30,62,14, 5, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 36, 40, 50
3,50,752,34, 5, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 36, 40
40,82,84, 5, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 36, 40, 45, 50, 55, 60
4,51,02,910, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 36, 40, 45, 50
51,03,45, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 36, 40, 45, 50, 55, 60, 65, 70, 75, 80
61,253,910, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 36, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100
81,55,5
102,06,510, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 36, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, 110, 120, 140, 160
122,57,510, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 36, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, 120, 130, 140, 160, 180
163,010,510, 16, 18, 20, 22, 24, 26, 28, 30, 32, 36, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100, 110, 120, 130, 140, 150, 160, 180, 200
204,012,520, 30, 32, 36, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100, 120, 130, 140, 160, 180, 200
