DIN 1473

SK: Valcový rýhovaný kolík
EN: Grooved pin full length parallel grooved
DE: Zylinderkerbstift

Standards: DIN 1473 | ISO 8740

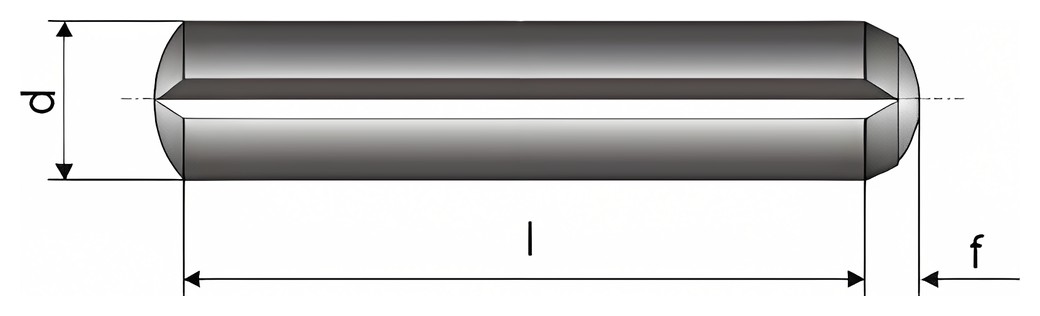

DIN 1473 – Technical drawing

Available sizes:

dhfLengths l in stock (mm)
1,5h90,86, 8, 10, 12, 16, 20
2h90,94, 6, 8, 10, 12, 14, 16, 18, 20, 24, 30
2,5h91,26, 8, 10, 12, 14, 16, 20, 24, 30
3h91,36, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 36, 40
4h111,86, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 35, 36, 40, 45, 50, 60
5h1128, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 35, 36, 40, 45, 50, 55, 60
6h112,510, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 35, 36, 40, 45, 50, 55, 60, 65, 70, 80
8h112,810, 12, 14, 16, 20, 22, 24, 25, 26, 28, 30, 32, 35, 36, 40, 45, 50, 55, 60, 70, 80, 90, 100
