DIN 1472

SK: Kužeľovorýhovaný kolík s rýhovaním do polovice dĺžky
EN: Grooved pin half length taper grooved
DE: Paßkegelkerbstift

Normy: DIN 1472 | ISO 8745

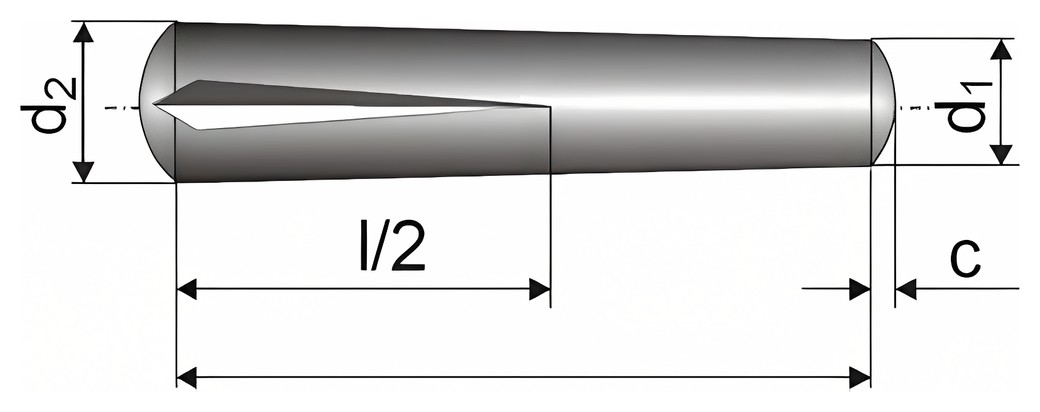

DIN 1472 – Technický výkres

Dostupné rozmery:

d 1hd 2Dodávané dĺžky l (mm)
1,5h91,626, 8, 10, 12, 16
2h92,156, 8, 10, 12, 14, 16, 18, 20, 30
2,5h92,686, 8, 10, 12, 16, 18, 20
3h93,256, 8, 10, 12, 14, 16, 18, 20, 22, 24, 25, 26, 28, 30, 32, 40
4h114,36, 8, 10, 12, 14, 16, 18, 20, 22, 24, 25, 26, 28, 30, 32, 36, 40, 50, 60
5h115,38, 10, 12, 14, 16, 18, 20, 22, 24, 25, 26, 28, 30, 32, 35, 36, 40, 50, 60
6h116,310, 12, 14, 16, 18, 20, 22, 24, 25, 26, 28, 30, 32, 35, 36, 40, 45, 50, 60, 80
8h118,3510, 12, 14, 16, 18, 20, 22, 24, 25, 26, 28, 30, 32, 35, 36, 40, 45, 50, 55, 60, 70, 80, 100
