DIN 1

SK: Kužeľový kolík
EN: Taper pin
DE: Kegelstift

Standards: DIN 1 | ISO 2329 | STN 022153

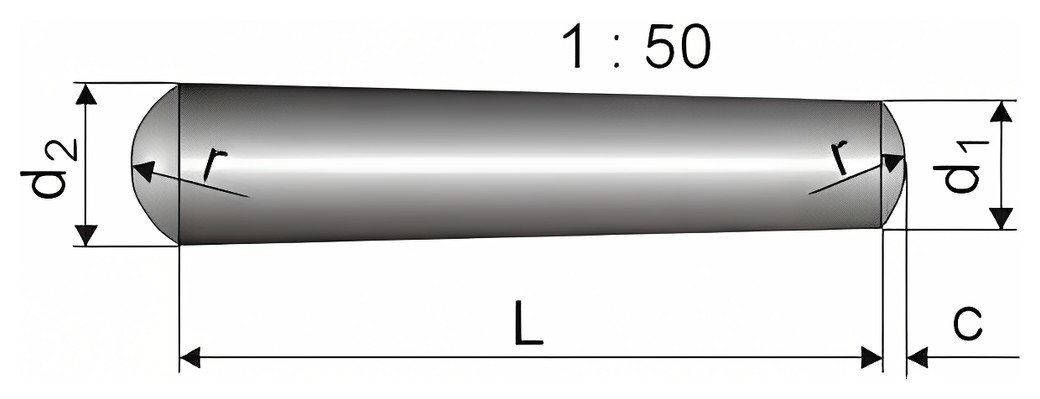

DIN 1 – Technical drawing

Available sizes:

d 1 / h 10	r	Lengths l in stock (mm)
1,5	1,6	10, 12, 16, 20
2	2,5	10, 12, 14, 16, 18, 20, 30, 32, 36, 40, 50
2,5	2,5	14, 16, 20, 30, 40
3	4	10, 12, 14, 16, 18, 20, 24, 26, 28, 30, 32, 36, 40, 45, 50, 60
4	4	12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 36, 40, 45, 50, 55, 60, 70, 80, 100
5	6	16, 18, 20, 22, 24, 26, 28, 30, 32, 36, 40, 45, 50, 55, 60, 65, 70, 80, 90, 100
6	6	20, 24, 26, 28, 30, 32, 36, 40, 45, 50, 55, 60, 70, 80, 90, 100, 120
8	10	24, 26, 28, 30, 32, 36, 40, 45, 50, 55, 60, 70, 80, 90, 100, 110, 120, 130, 140, 150
10	10	28, 30, 32, 36, 40, 45, 50, 55, 60, 70, 80, 90, 100, 110, 120, 130, 140, 150
12	12	30, 36, 40, 45, 50, 55, 60, 70, 80, 90, 100, 110, 120, 130, 140, 150
14	16	50, 80, 100, 120, 140
16	16	40, 50, 60, 70, 80, 90, 100, 120, 140, 150, 165, 180, 200
20	20	50, 60, 70, 80, 100, 120, 140, 150
